FAN-D20
HICFM
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| View wholesale prices
| |||||||||
| Our 20" Enclosed Motor Drum Fan offers reliable cooling and ventilation, specifically designed for environments with dust, moisture, or debris. The sealed motor housing prevents particle ingress, enhancing longevity and safety. We provide tailored solutions for factories, garages, and workshops requiring dependable airflow in potentially contaminating conditions, minimizing maintenance needs. | |||||||||

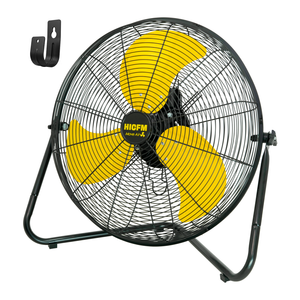

The 20 Inch Enclosed Motor Drum Fan provides 6,300 CFM of airflow with an IP44-rated enclosed motor for dusty or damp industrial environments. It features three aluminum blades, a 180-degree adjustable tilt frame, and non-skid feet. The fan operates at 120V/60Hz, draws 180 watts, and runs at 1,580 RPM. It is suited for garages, workshops, and manufacturing areas where airborne particles are present.
The fan delivers 6,300 CFM on high, 5,600 CFM on medium, and 4,800 CFM on low. Air velocity reaches 8.9 m/s at the outlet. A rotary control knob on the motor housing allows speed changes without tools.
The motor housing carries an IP44 ingress protection rating, shielding internal components from solid particles larger than 1 mm and from water splashes in any direction. This makes the fan suitable for workshops with sawdust, metal shavings, or light moisture.
The fan head pivots 180 degrees on the U-shaped steel frame, allowing airflow to be directed upward, horizontally, or downward. A wingnut knob locks the angle in place.
The shroud is powder-coated yellow steel with a steel wire safety grille. The frame has non-skid rubber feet to prevent sliding on smooth floors. Product dimensions are 10"D × 24"W × 23"H, and the unit weighs 16.3 pounds. A 6-foot power cord is included.
Speed Setting | Airflow (CFM) |
|---|---|
High | 6,300 |
Medium | 5,600 |
Low | 4,800 |
Parameter | Value |
|---|---|
Air velocity at outlet | 8.9 m/s |
Housing width | 24 inches |
Height | 23 inches |
Depth | 3 inches |
Base width | 10 inches |
Power cord length | 6 feet |
Feature | Detail |
|---|---|
Motor enclosure | IP44 rated |
Feet | Non-skid rubber |
Tilt adjustment | 180 degrees |
Attribute | Value |
|---|---|
Brand | HiCFM |
Model | FAN-D20 |
Style | 20" Shroud Floor Fan |
Product Dimensions | 10"D × 24"W × 23"H |
Special Feature | High airflow, Adjustable tilt, High velocity |
Noise Level | 79 dB(A) |
Wattage | 180 W |
Air Flow Capacity | 6,300 CFM |
Speed | 1,580 RPM |
Voltage | 120V (AC) / 60Hz |
Item Weight | 16.3 lb |
Motor enclosure | IP44 |
Number of Blades | 3 |
Blade Material | Aluminum |
Control | Rotary 3-speed switch |
Indoor/Outdoor | Indoor |
Cools work bays and circulates air while the enclosed motor resists dust and metal shavings generated during sanding or grinding.
The IP44 motor housing protects against sawdust accumulation, and the adjustable tilt directs airflow toward cutting stations.
Provides spot cooling for workers on production lines and helps disperse fumes from soldering or adhesive application.
Suitable for temporary use in covered patios or loading docks during dry conditions. Avoid direct rain exposure.
The fan is designed for indoor industrial use. Its IP44 motor resists dust and light moisture, but the unit should not be exposed to direct rain or submerged. Use it under covered outdoor areas only.
The fan operates at approximately 79 dB(A) on high speed, measured at 1 meter. This is comparable to a vacuum cleaner and is acceptable in most industrial environments.
The fan is rated for 120V/60Hz. Using a voltage converter may affect motor performance and could void the warranty. For 230V/50Hz applications, contact the manufacturer for an international model.
The motor is permanently lubricated and requires no additional lubrication. Inspect the bearings annually for signs of wear if the fan runs continuously.
The fan carries a 1-year warranty covering defects in materials and workmanship. Regular cleaning and maintenance are required to maintain warranty eligibility.
