FAN-D30
HICFM
USA
| Quantity: | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| View wholesale prices
| |||||||||
| Designed for heavy-duty industrial use, this 30" Commercial Drum Fan ensures robust airflow in harsh environments like manufacturing plants and warehouses. It promotes efficient cooling and air movement. We provide long-lasting, industrial-grade solutions that withstand rigorous conditions, helping businesses improve productivity and cut operational expenses through durable, cost-effective equipment built for continuous commercial applications. | |||||||||
The 30 Inch Commercial Drum Fan delivers 13,000 CFM of airflow for warehouses, manufacturing floors, and workshops. Built with a 1/3 HP motor, aluminum blades, and a UL-listed steel housing, this fan supports continuous operation in commercial and industrial settings. It operates at 120V/60Hz, draws 1.95 amps, and includes a 9-foot SJT power cord.

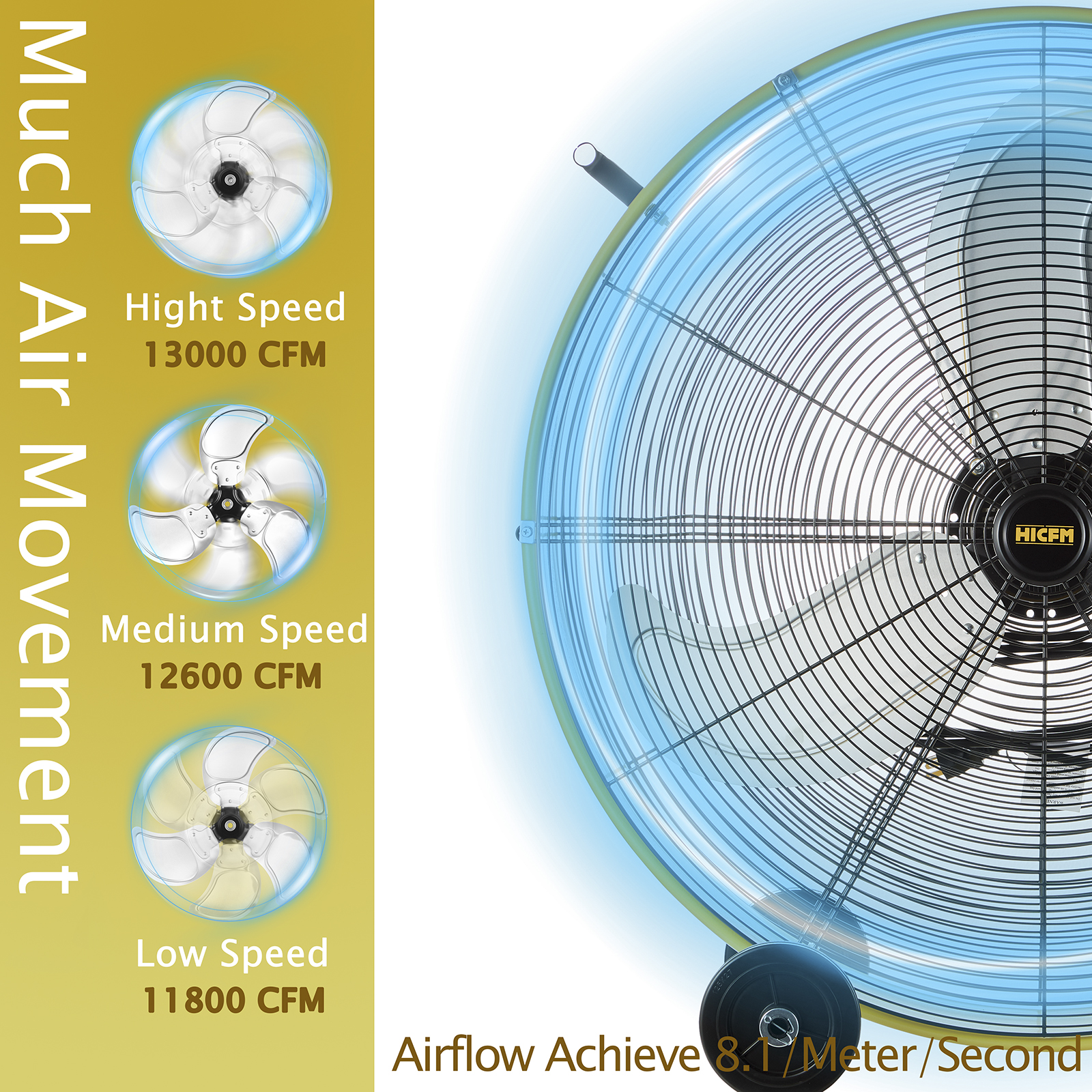

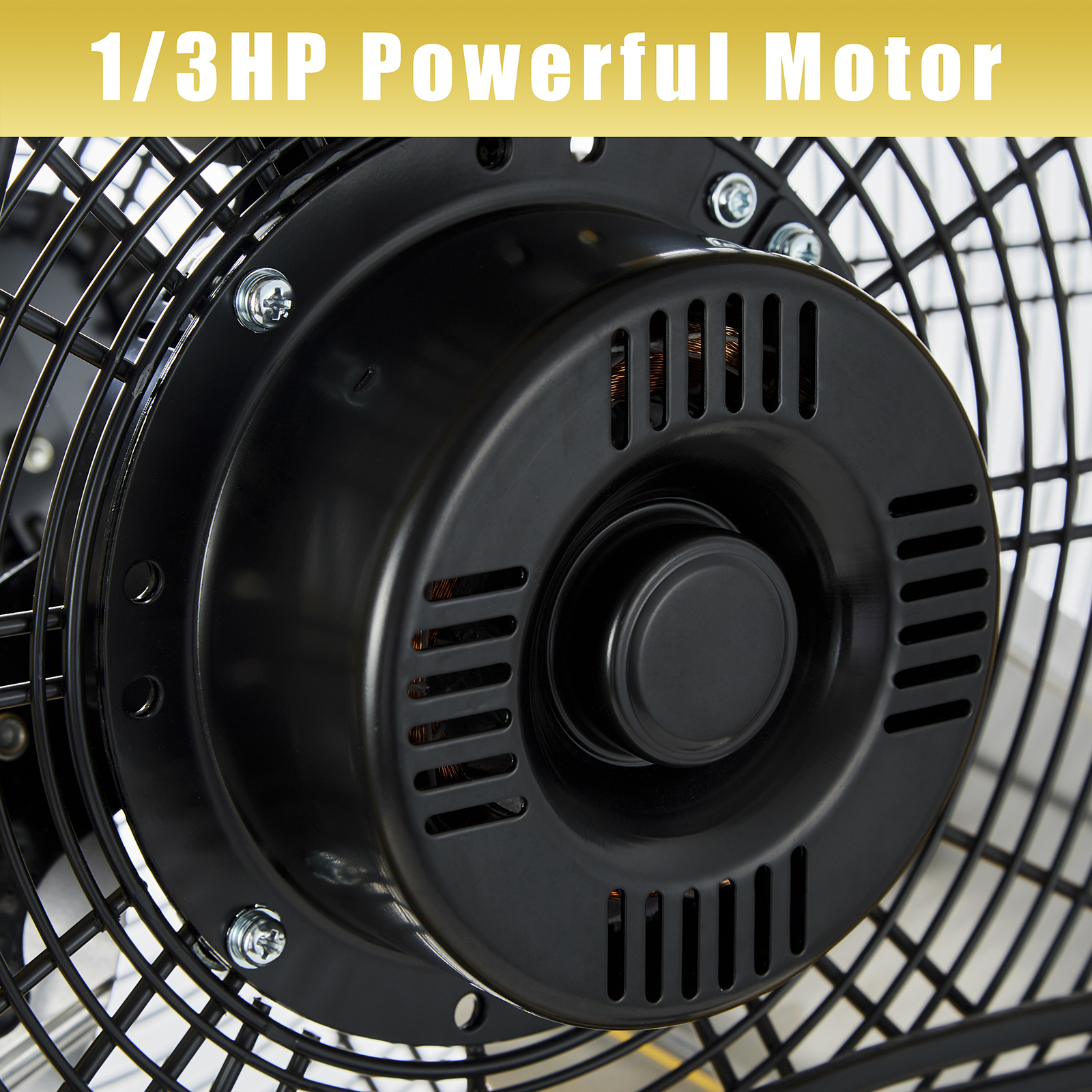

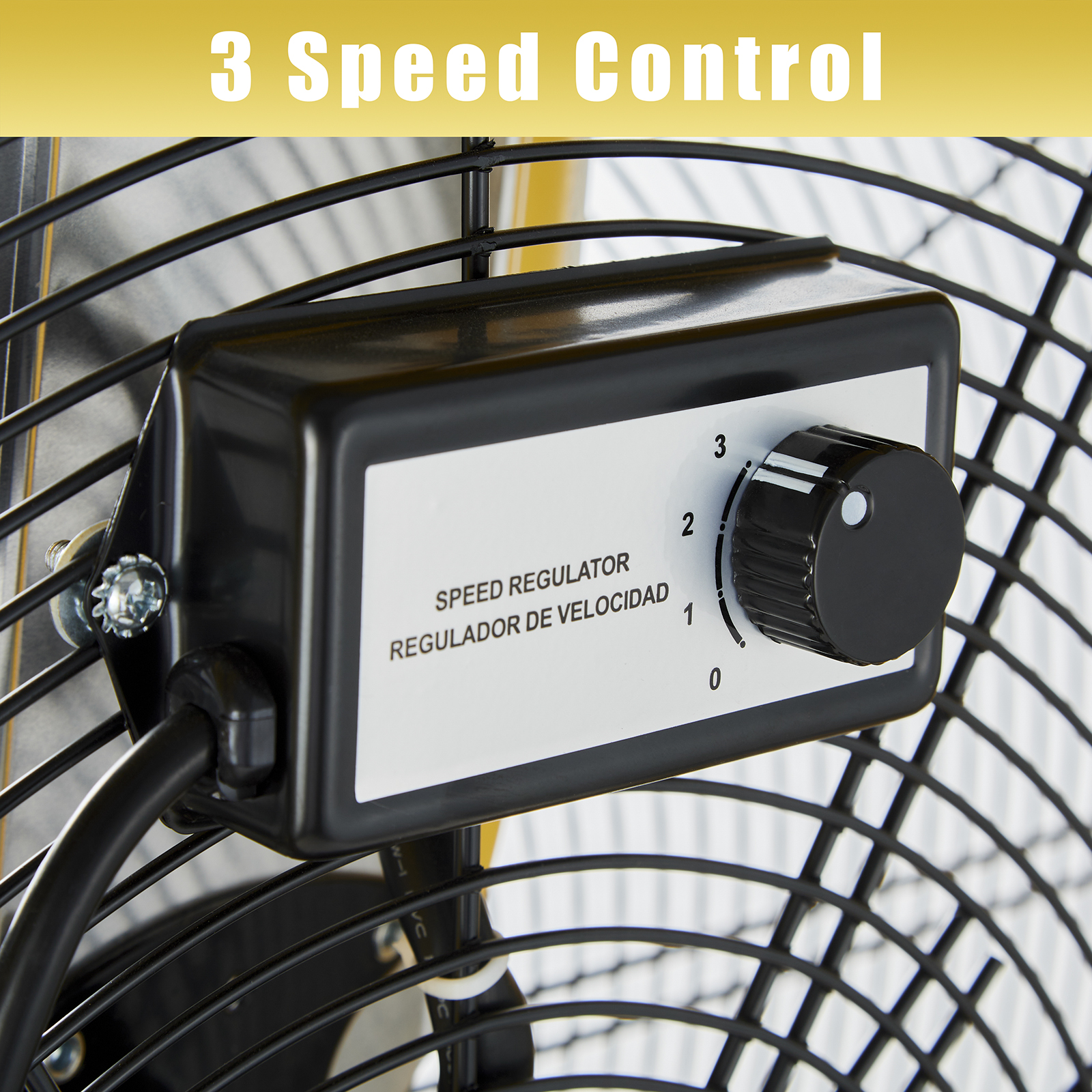

A 1/3 HP motor with shielded ball bearings drives three aluminum blades, producing 13,000 CFM on high speed, 12,600 CFM on medium, and 11,800 CFM on low. Air velocity reaches 8.1 m/s at the outlet, with an effective throw distance of 35 feet. Three speed settings allow adjustment based on space requirements and occupancy.
The fan measures 67 dB(A) at 1 meter, 63 dB(A) at 2 meters, and 60 dB(A) at 3 meters on high speed. Low-speed operation reduces noise further, making it suitable for occupied work areas. The aerodynamic barrel housing directs airflow in a concentrated column rather than dispersing it immediately.
The housing is powder-coated safety-yellow steel with aluminum blades and a 100% copper-wound stator. The motor is thermally protected and permanently lubricated. The fan carries UL, cUL, and OSHA certifications. A steel wire grille covers the blades on both intake and discharge sides.

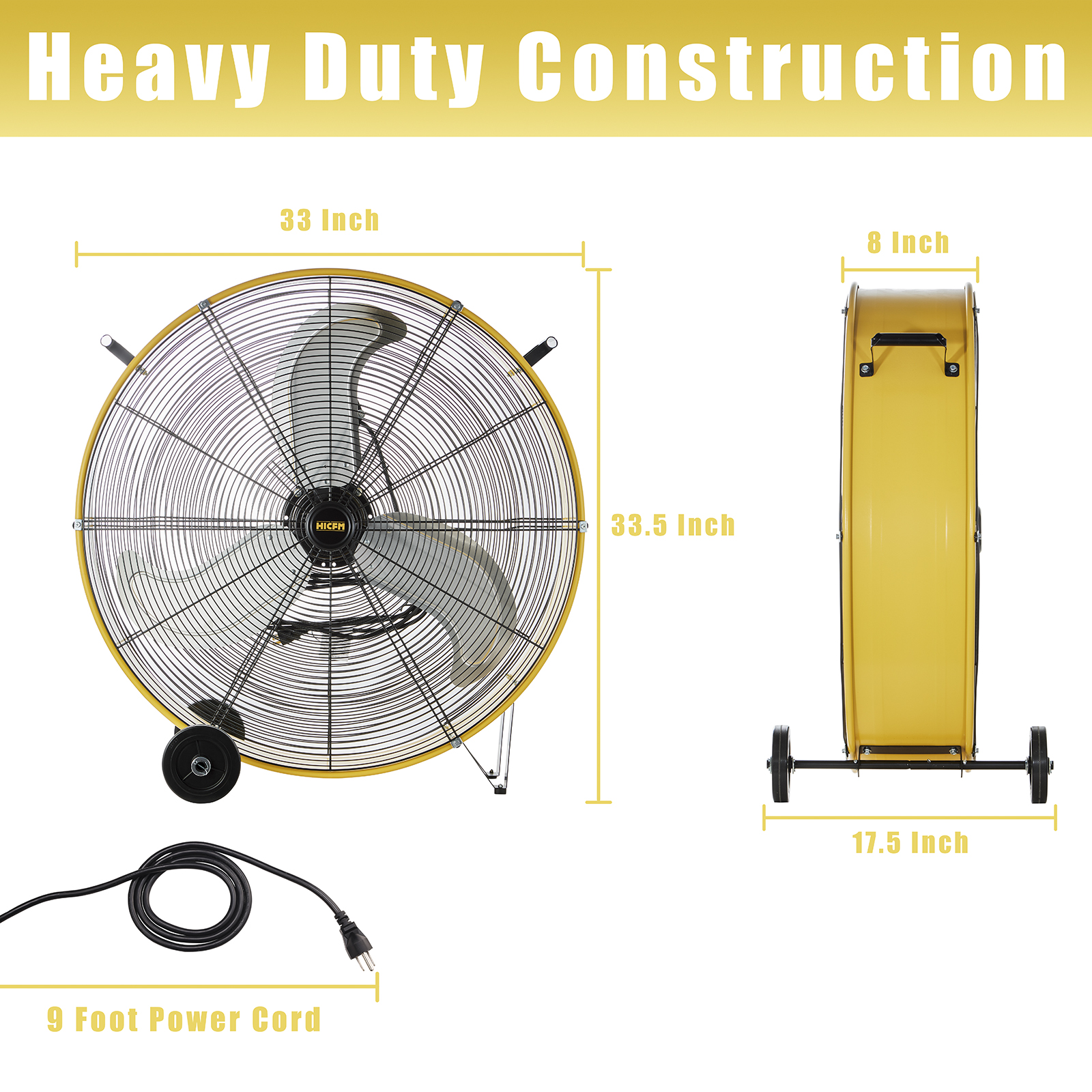

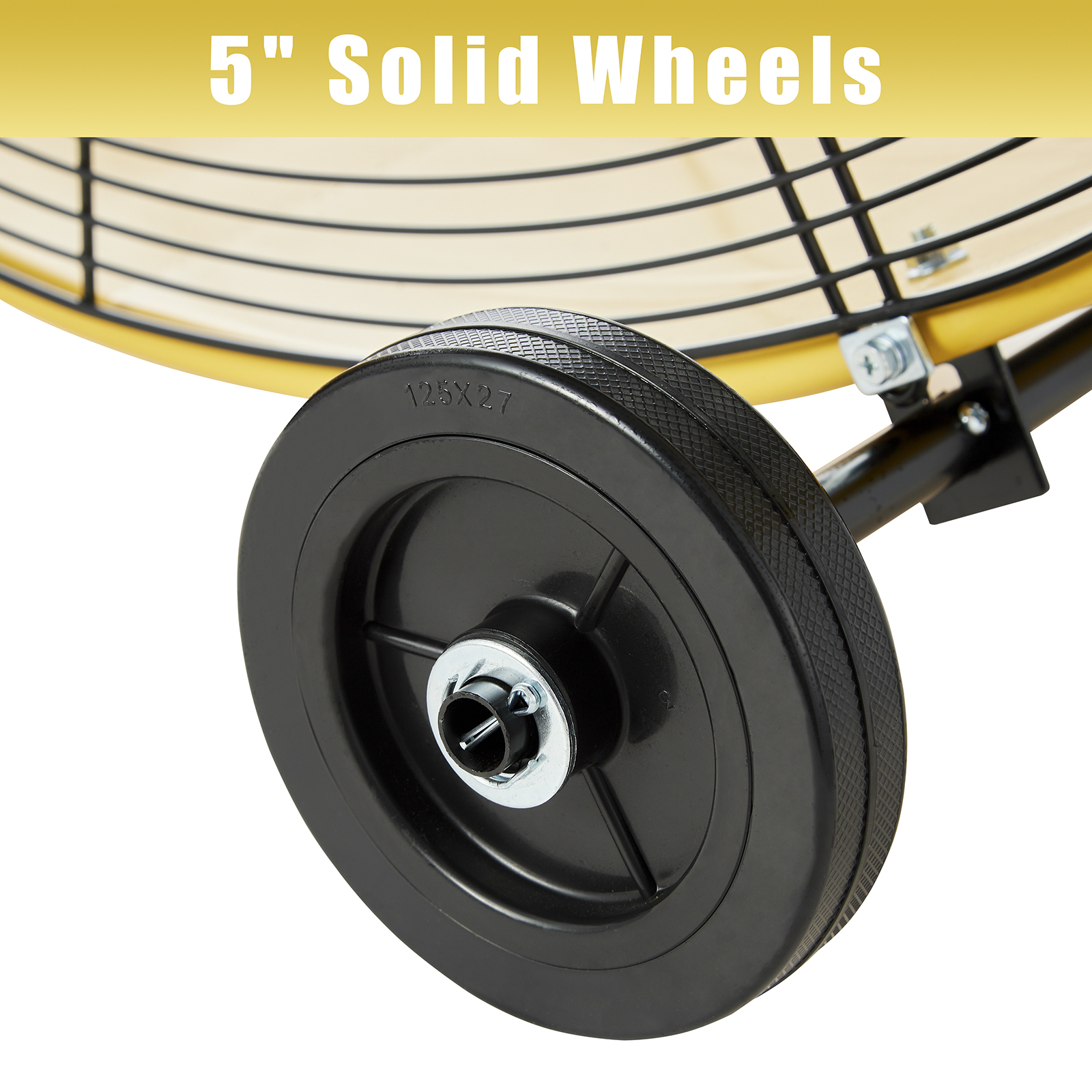

The fan ships with frustration-free packaging and requires one assembly step. Two 5-inch solid wheels, a cord wrap, and two carry handles enable relocation by one person. Product dimensions are 17.5"D × 33"W × 33.5"H, and the unit weighs 37.8 pounds.
Speed Setting | Airflow (CFM) |
|---|---|
High | 13,000 |
Medium | 12,600 |
Low | 11,800 |
Measurement | Value |
|---|---|
Air velocity at outlet | 8.1 m/s |
Throw distance | 35 feet |
Noise at 1 m (high) | 67 dB(A) |
Noise at 2 m (high) | 63 dB(A) |
Noise at 3 m (high) | 60 dB(A) |
Attribute | Value |
|---|---|
Brand | HiCFM |
Model | FAN-D30 |
Style | 30" Industrial Barrel Fan |
Product Dimensions | 17.5"D × 33"W × 33.5"H |
Room Type | Warehouse, Workshop, Factory, Garage, Basement, Commercial |
Special Feature | Extended air throw, lower noise |
Recommended Uses | Cooling, Air Circulation, Drying |
Noise Level | 67 dB(A) at 1 m |
Wattage | 235 W |
Number of Blades | 3 |
Air Flow Capacity | 13,000 CFM |
Blade Diameter | 30 inches |
Speed | 1,130 RPM |
Voltage | 120V (AC) / 60Hz |
Current | 1.95 A |
Item Weight | 37.8 lb |
Specification Met | UL, cUL, OSHA |
Control Method | Rotary speed switch |
Blade Material | Aluminum |
Cable Length | 9 feet |
Motor HP | 1/3 HP |
Indoor/Outdoor | Indoor |
Circulates air across open floor areas to reduce heat buildup near loading docks and packaging lines, supporting worker comfort during summer operations.
Cools assembly stations and removes ambient heat generated by running machinery, helping maintain consistent operating temperatures for equipment.
Ventilates enclosed spaces such as basements and tunnels during concrete cutting or painting, reducing dust and fume concentration.
Circulates air in livestock barns and grain storage areas to control humidity and reduce ammonia buildup.
No. This fan is not rated for hazardous locations with flammable gases or combustible dust. Use an explosion-proof fan certified for such environments.
The fan operates safely in ambient temperatures up to 104°F (40°C). For environments near furnaces or kilns, select a high-temperature-rated model.
Yes. This model includes a 9-foot SJT power cord with a grounded 3-prong North American plug.
The motor is permanently lubricated and requires no additional lubrication under normal use. Annual bearing inspection is recommended for continuously operated units.
The fan carries a 1-year warranty covering defects in materials and workmanship. Regular maintenance per the user manual is required to maintain warranty eligibility.
