Pull Chain Removal and Installation

Removal

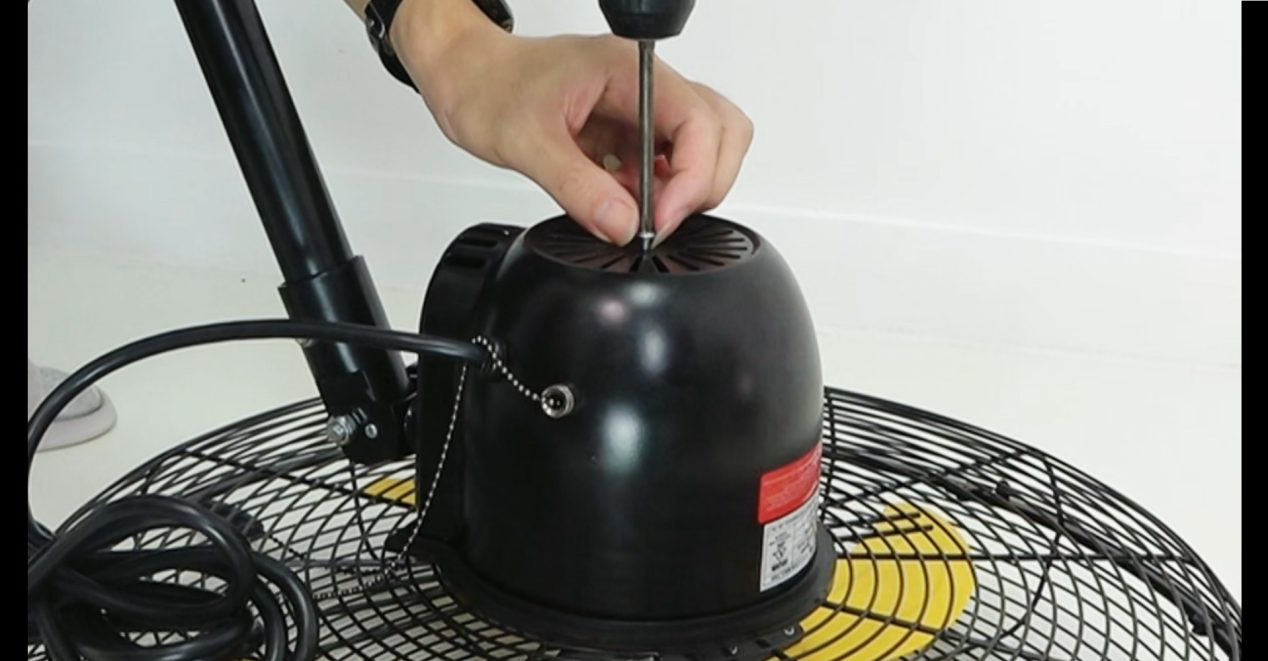

Step 1: Remove the screws on the back of the fan head

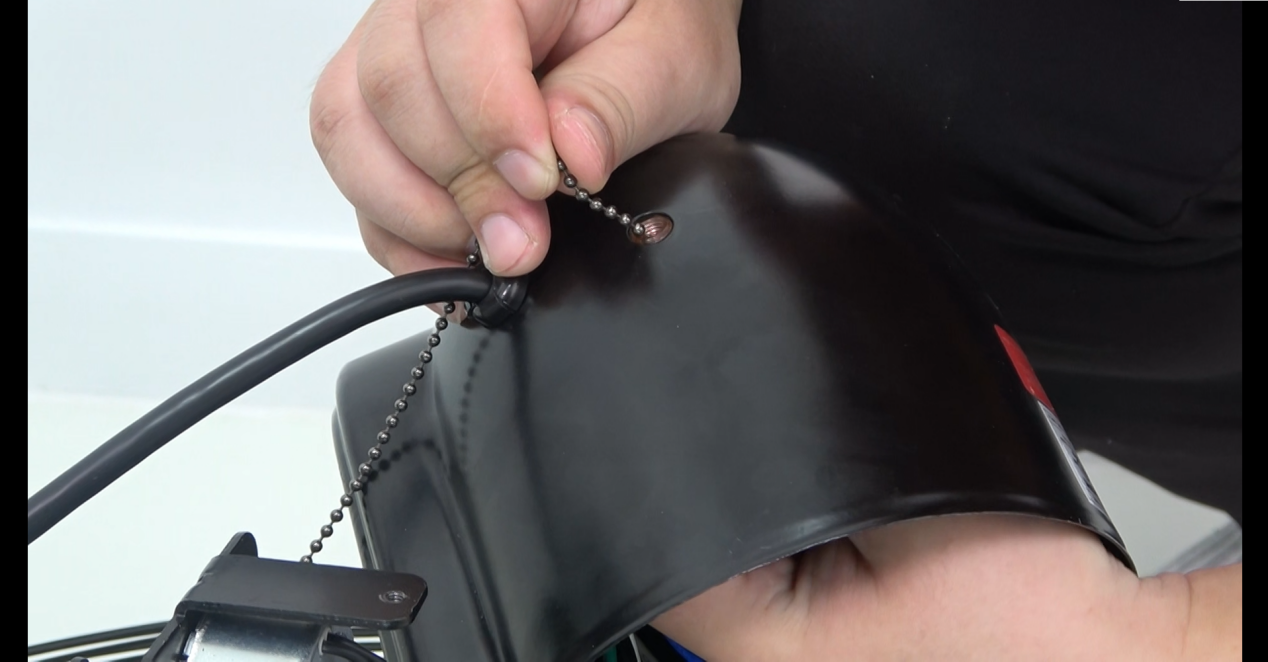

Step 2: Unscrew and detach the joint

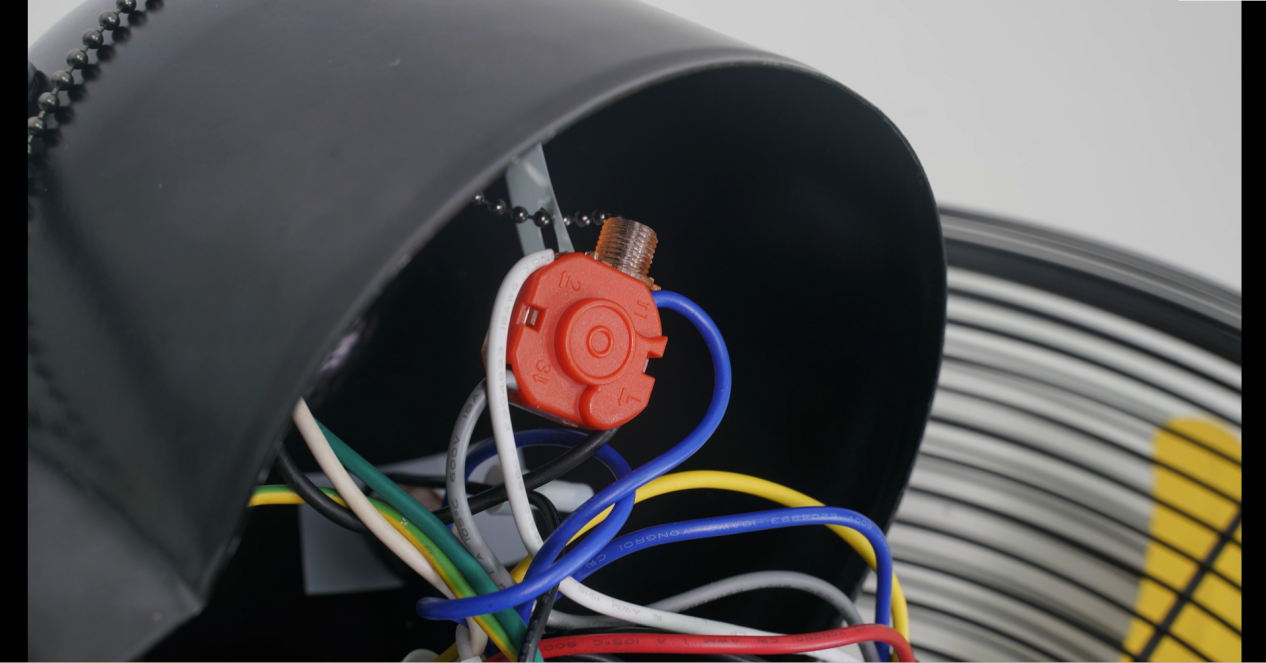

Step 3: Disconnecting the switching leads (1-White; 2-Gray; 3-Blue; L- Black)

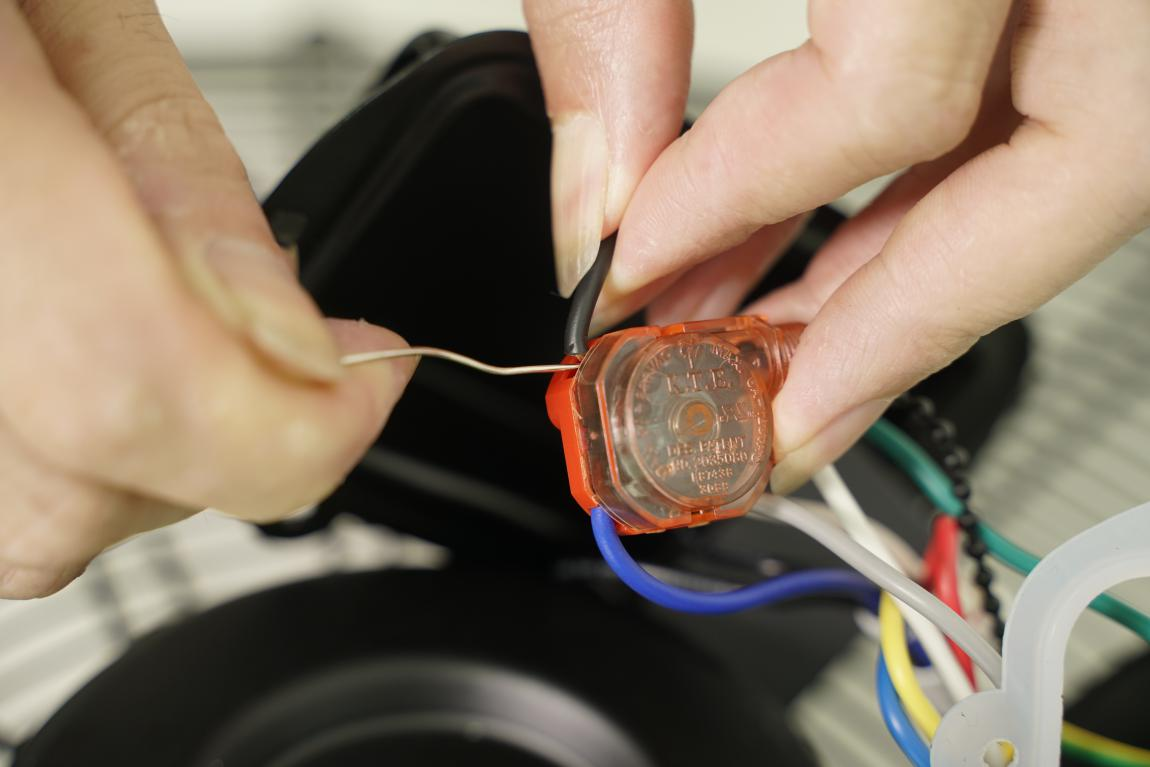

Use a small object such as a paper clip to press down on the metal tabs and then pull the wires out.

All wires pulled out, removal complete.

Installation

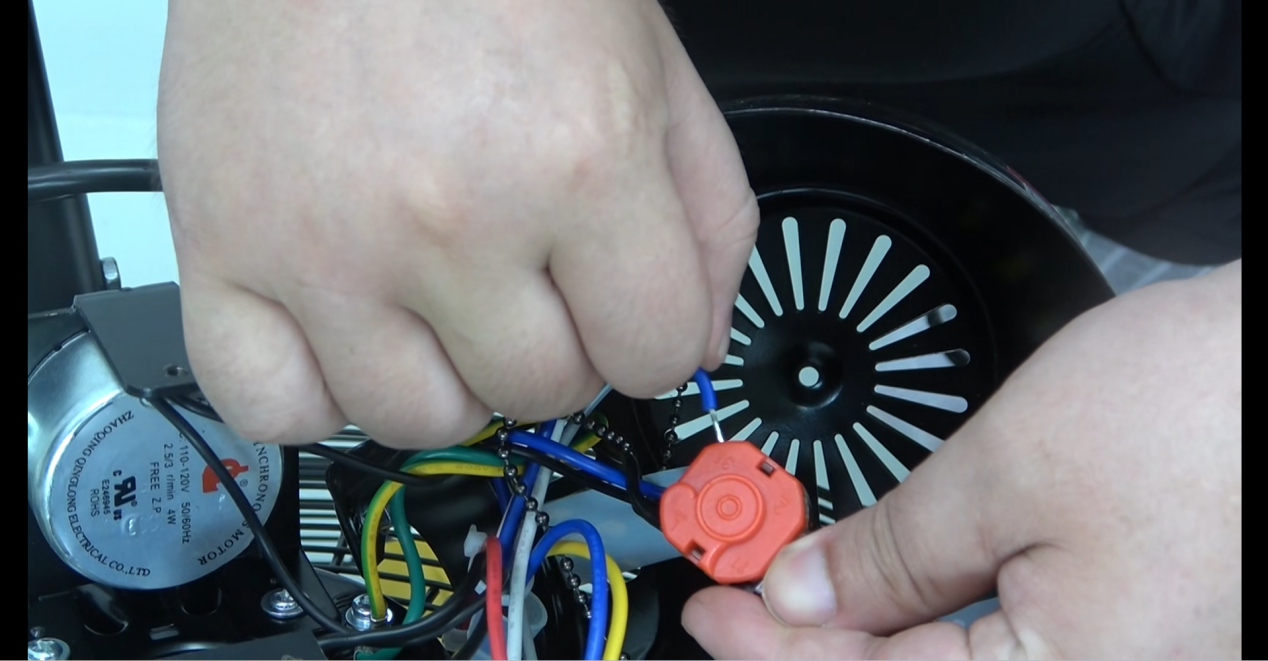

Step 1: Connect the switch leads according to color (1-White; 2-Gray; 3-Blue; L- Black)

Caution: Metal parts must not be exposed outside the switch

Step 2: Put the switch into the control box

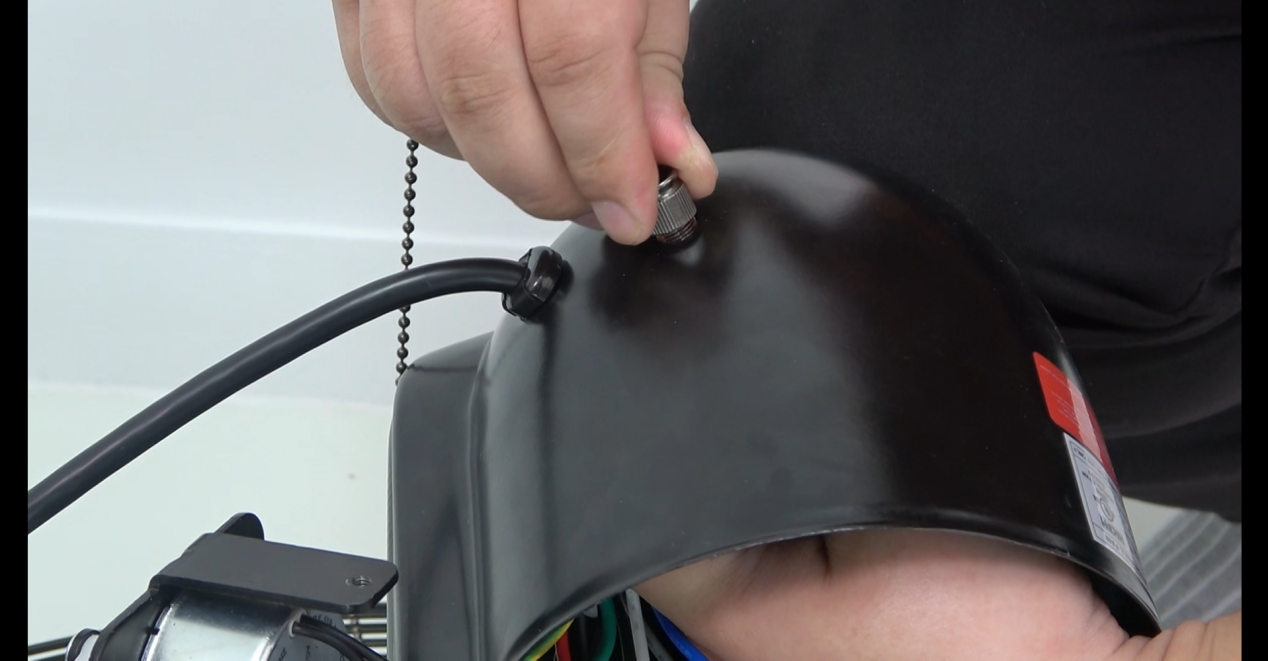

Step 3: Put and tighten the elbow (Threaded side facing inward)

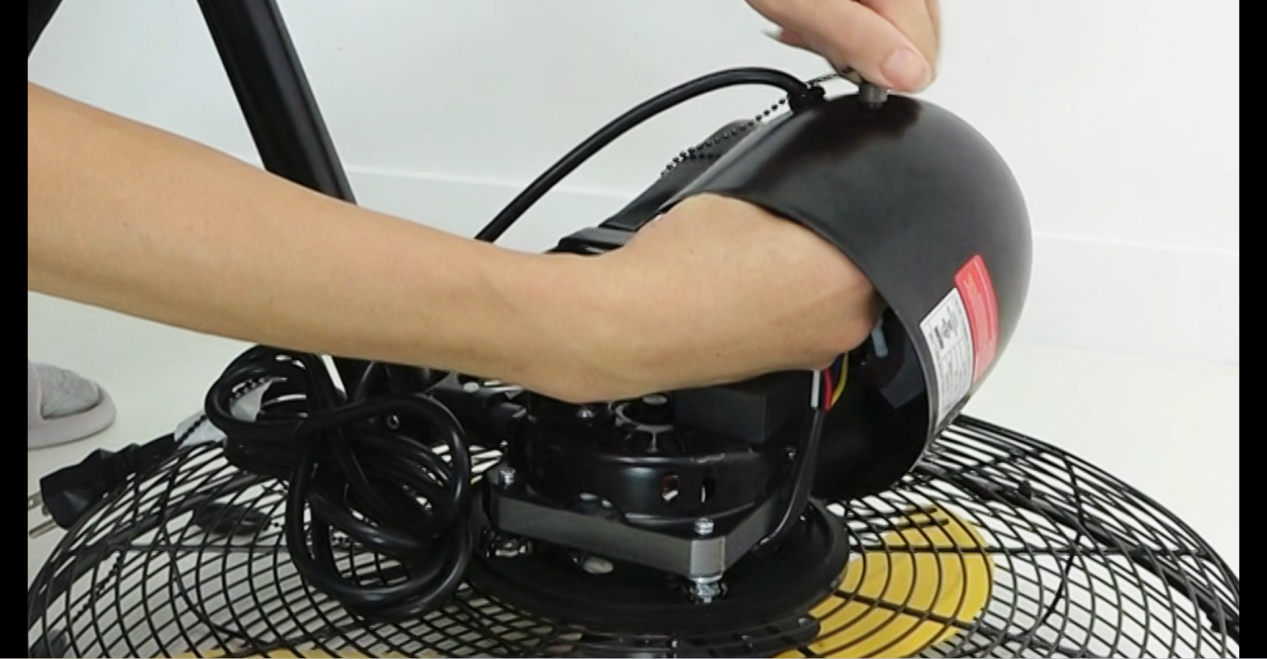

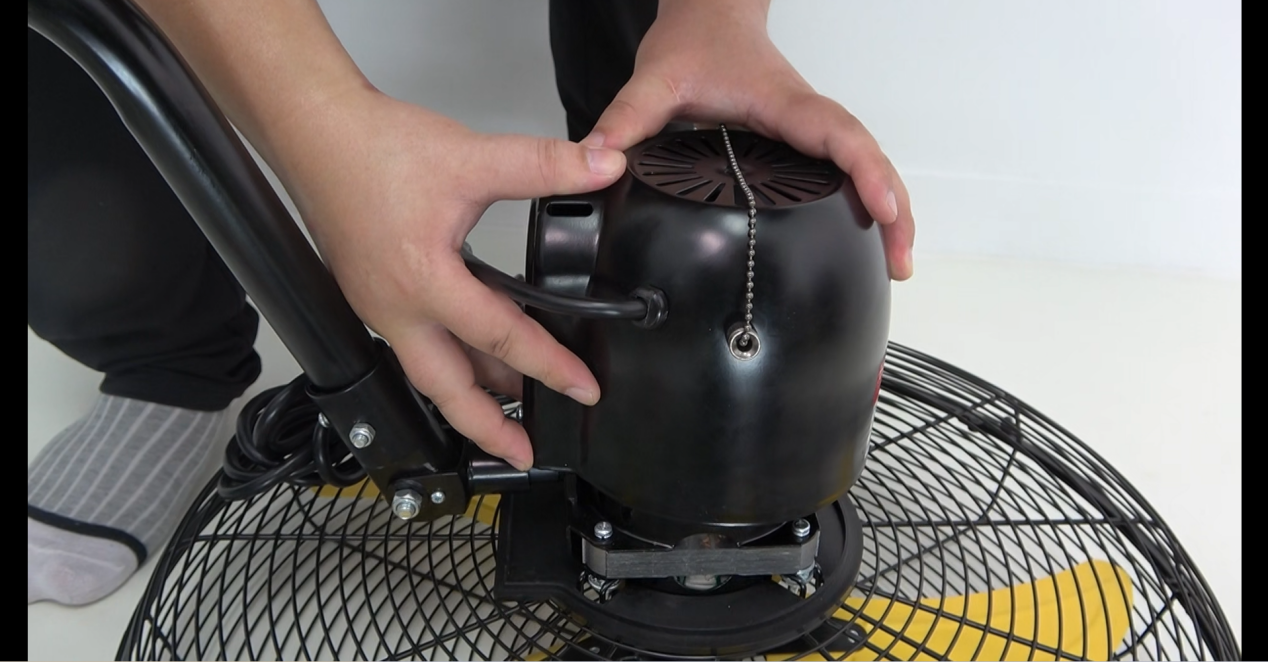

Step 4: Put the back cover on the fan head.

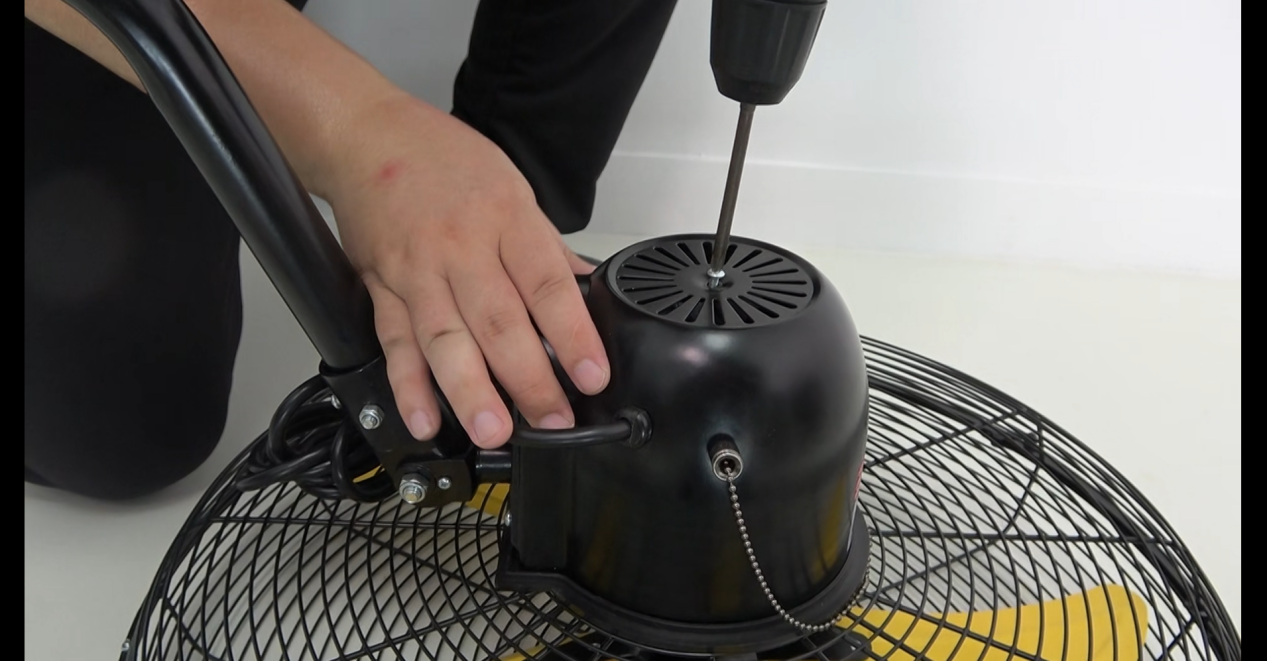

Step 5: Install the screw on the back of the fan head

Finished
